Place of Origin:
China
نام تجاری:
Customization
گواهی:
UL ，ISO13485 , ISO9001.2005 , ISO14001
Model Number:
34/38AWG Micro-Coax Cable Assembly

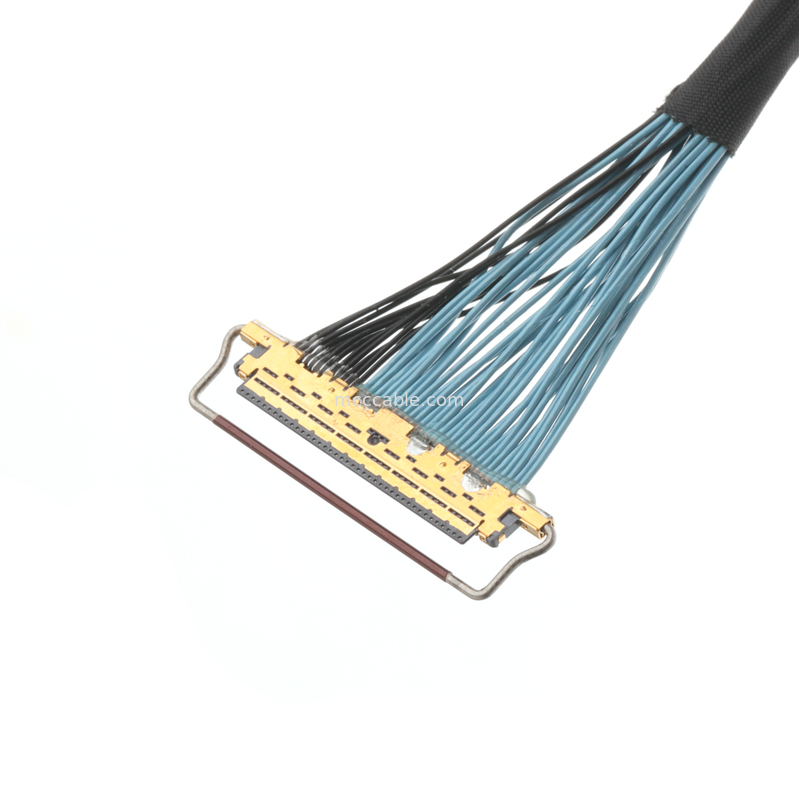

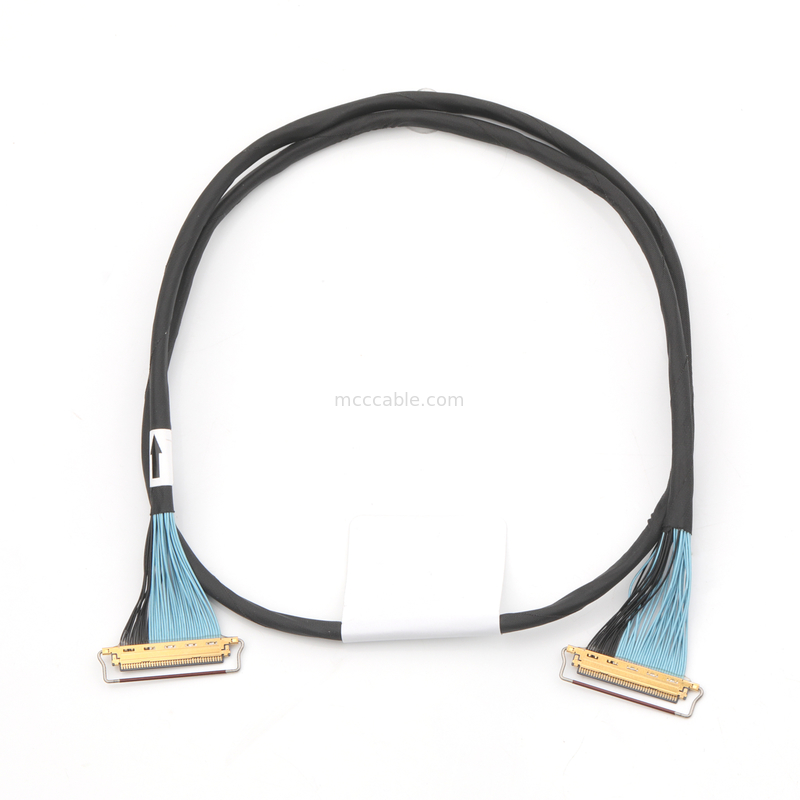

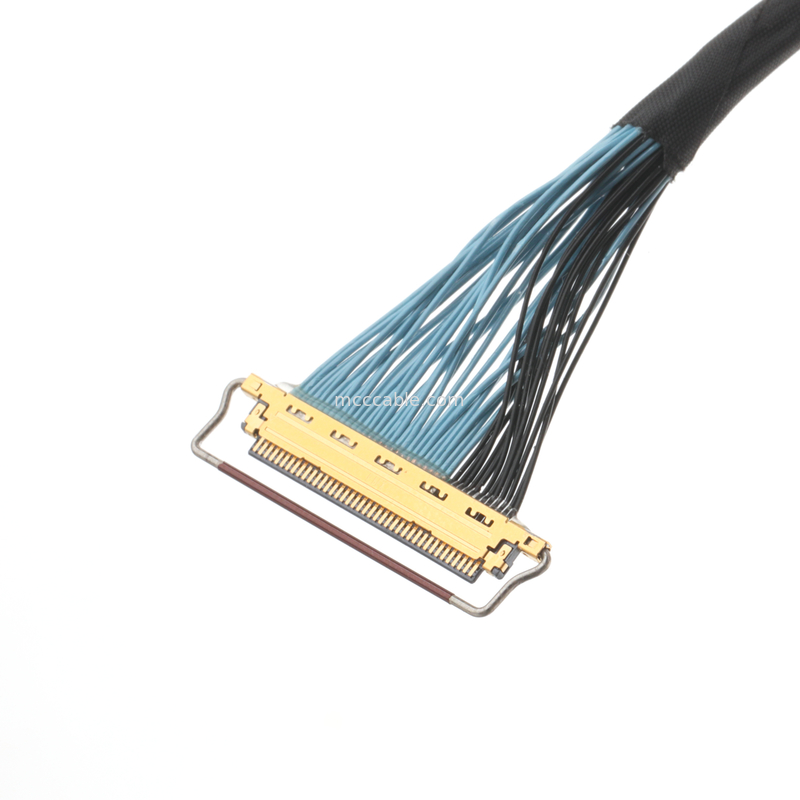

34/38AWG Micro-Coax Cable Assembly, Dual Shielded
for High-Speed Data Transmission
34/38AWG Micro-Coax Cable Assembly:
| Category | Specifications |
| Connectors (Both Ends) | 0.4mm pitch, gold-plated contacts, mechanical locking design |
| Cable 1 (Black) | UL10064 34AWG, 7/0.06 tinned copper, OD: 0.32±0.02mm, double-shielded |
| Cable 2 (Blue) | UL1354 38AWG, 7/0.04(+0.002) tinned copper, OD: 0.395mm |
| Electrical Tests | 100% open/short tested, contact resistance ≤5Ω, insulation resistance ≥10MΩ @200V DC |
| Signal Performance | Bandwidth: ≥5GHz, impedance: 50Ω±10%, insertion loss <0.3dB/cm @1GHz |
| Durability | 500+ mating cycles, operating temperature: -40°C to +85°C |
| Compliance | RoHS compliant, UL-certified (UL10064/UL1354) |
High-Density Micro-Coaxial Solution for Precision Applications
Dual-shielded cables: UL10064 (34AWG) and UL1354 (38AWG) wires
provide EMI/RFI protection for sensitive high-frequency signals.
0.4mm pitch connectors: Ideal for space-constrained designs like medical
scopes or AR/VR devices, with gold-plated contacts for stable transmission .
Custom configurations: Modify pinouts, shielding layers, or cable lengths
to meet OEM requirements, backed by 100% electrical testing.
High-speed performance: Supports Thunderbolt™-level data rates
(20Gbps/lane) with minimal signal loss.
Ideal for: Medical imaging, aerospace instrumentation, and compact consumer
electronics requiring reliable high-frequency signal integrity .
Q1. Is it a factory?
A:Yes,we have more than 15 years of design and manufacturring experience!
Q2. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q3. What is our specialty?
A:We can design products on the application.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq
1000PCs. Mould fee will be charged according to design.
Q5. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive
ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro
cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a
nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q6. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a
nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%
to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100
3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and
offer images, and we will solve your problem in the way of replacing with new order or refund.
Q8. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.
