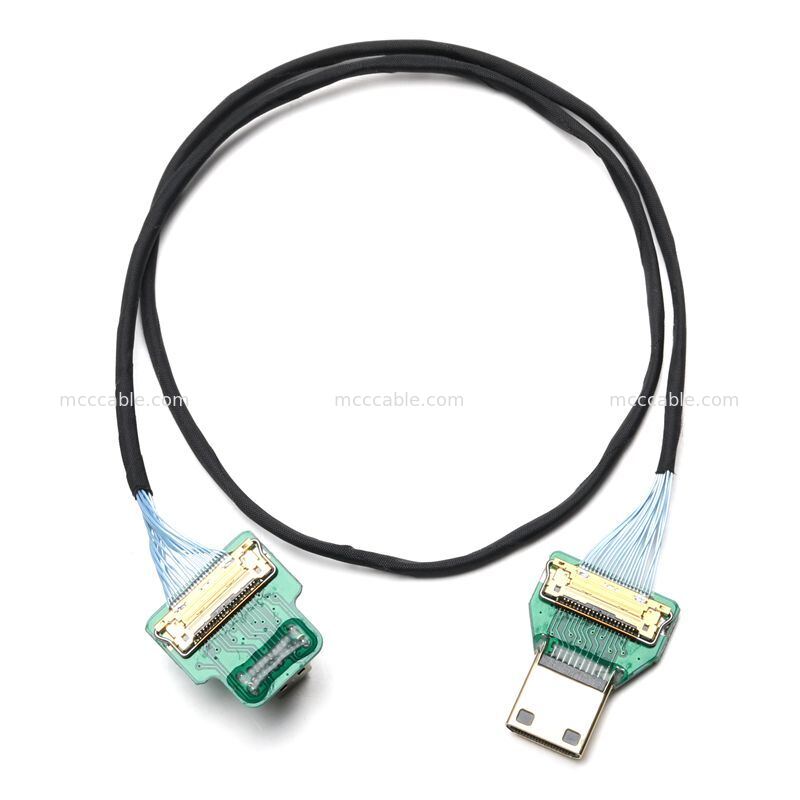

Micro HDMI to Mini HDMI Micro Coax Cable Assembly
for Embedded Display Systems Overview

The Micro HDMI to Mini HDMI Micro Coax Cable Assembly is designed for high-speed
video and data transmission in compact electronic devices where space optimization
and signal integrity are critical. Featuring a Micro HDMI connector on one end and a
Mini HDMI connector on the opposite end, this assembly provides a reliable interface
solution for embedded displays, industrial equipment, imaging systems, and portable
electronic devices.

Manufactured using ultra-fine 42AWG 50Ω micro coaxial cable, the assembly delivers
excellent signal performance while maintaining a lightweight and flexible structure. The
micro coax architecture helps minimize signal loss, reduce electromagnetic interference,
and support stable transmission of high-definition video signals.

The compact connector design and flexible cable construction make this assembly ideal
for applications where conventional HDMI cables cannot be accommodated due to limited
installation space.

Micro HDMI to Mini HDMI Micro Coax Cable Assembly
Specifications

Key Features of Micro HDMI to Mini HDMI Micro Coax
Cable Assembly

High-Speed HDMI Signal Transmission

Supports stable transmission of high-definition video, audio, and control signals between
HDMI-enabled devices.

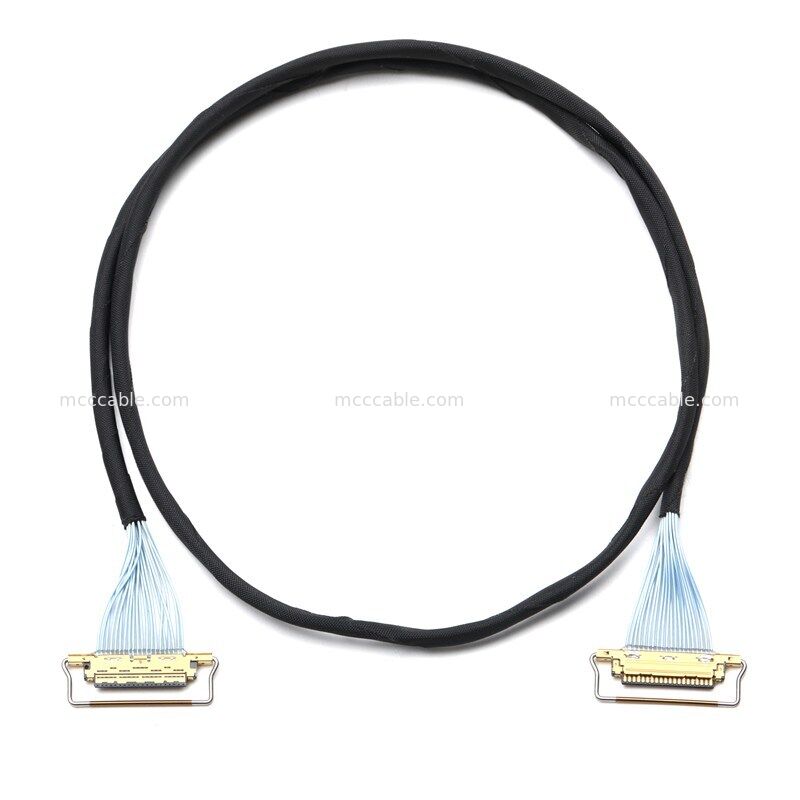

Ultra-Fine Micro Coax Construction

The 42AWG micro coax structure provides excellent flexibility while maintaining superior
electrical performance.

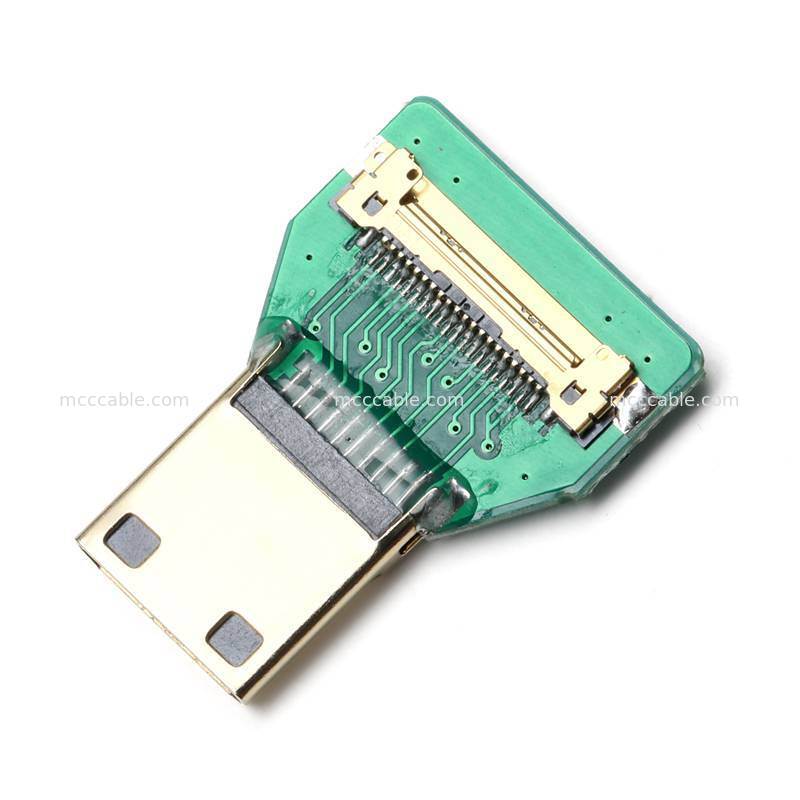

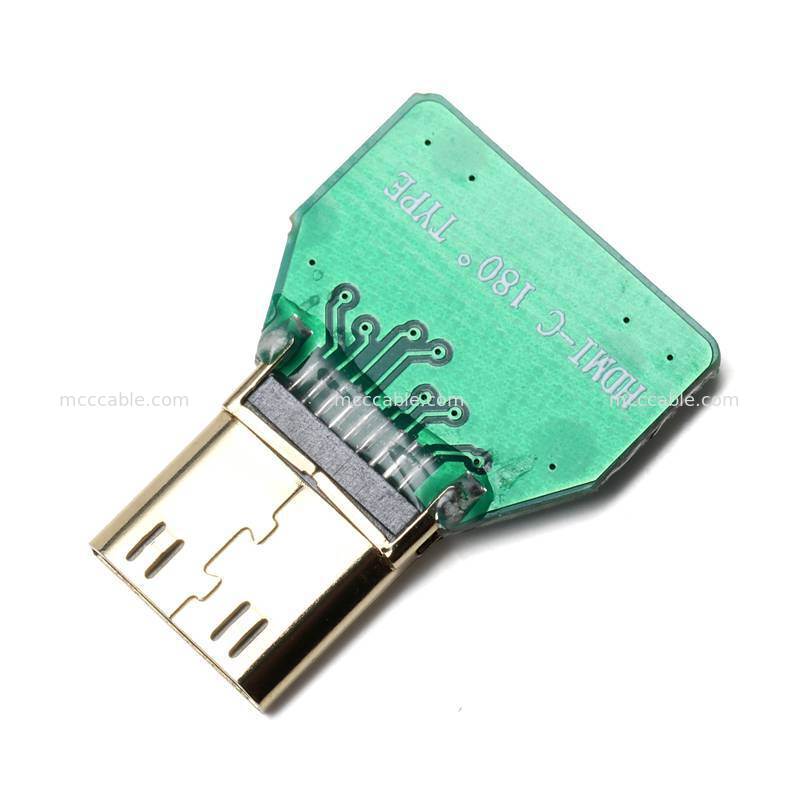

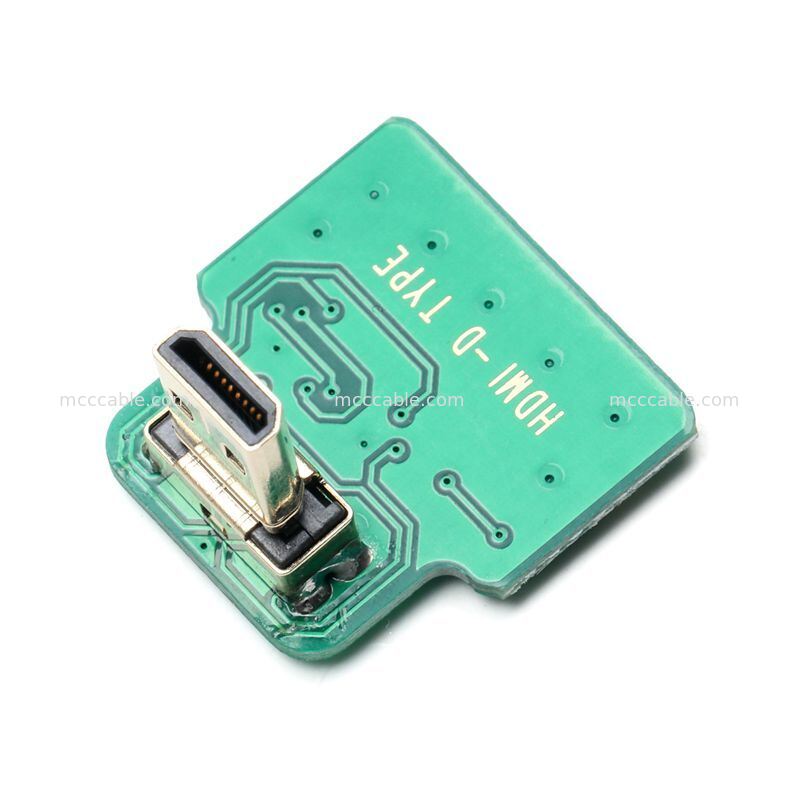

Space-Saving Connector Design

Micro HDMI and Mini HDMI connectors are ideal for compact electronics and embedded
systems.

Excellent EMI Protection

Individual coaxial shielding reduces signal interference and helps maintain transmission
quality.

Lightweight and Flexible Routing

The cable can be easily routed through confined spaces without compromising performance.

Reliable Mechanical Performance

Precision assembly ensures stable connectivity and long-term durability in demanding
applications.

Applications of Micro HDMI to Mini HDMI Micro Coax
Cable Assembly

Embedded Display Systems

Used for video signal transmission between embedded processors and display modules.

Industrial Equipment

Suitable for industrial HMI displays, control systems, and monitoring devices.

Medical Imaging Devices

Supports high-resolution display connections in portable medical equipment.

Camera and Imaging Systems

Used in compact imaging devices, machine vision systems, and digital cameras.

Portable Electronics

Ideal for tablets, handheld devices, portable monitors, and compact multimedia products.

Display Testing Equipment

Provides reliable HDMI connectivity for development and validation platforms.

Customization Options for Micro HDMI to Mini HDMI
Micro Coax Cable Assembly

We provide complete customization services including:

• Custom cable lengths
• Connector orientation options
• Pin assignment customization
• Different micro coax specifications
• EMI shielding enhancements
• Label printing
• Protective sleeving
• Prototype development
• Low-volume production
• High-volume manufacturing

Sino-Media is a specialized cable assembly manufacturer. We utilize cutting-edge
automation equipment, premium raw materials, a robust quality assurance system,
and a skilled technical team to deliver high-quality, custom cable and harness
components in small quantities. Our engineering, production, and quality control
teams ensure the excellence of these unique components. Our mission is to enhance
product quality continuously, meet customer needs, and maintain expertise in the
materials we use and recommend. Our dedication to customer satisfaction drives
the company’s ongoing growth.
